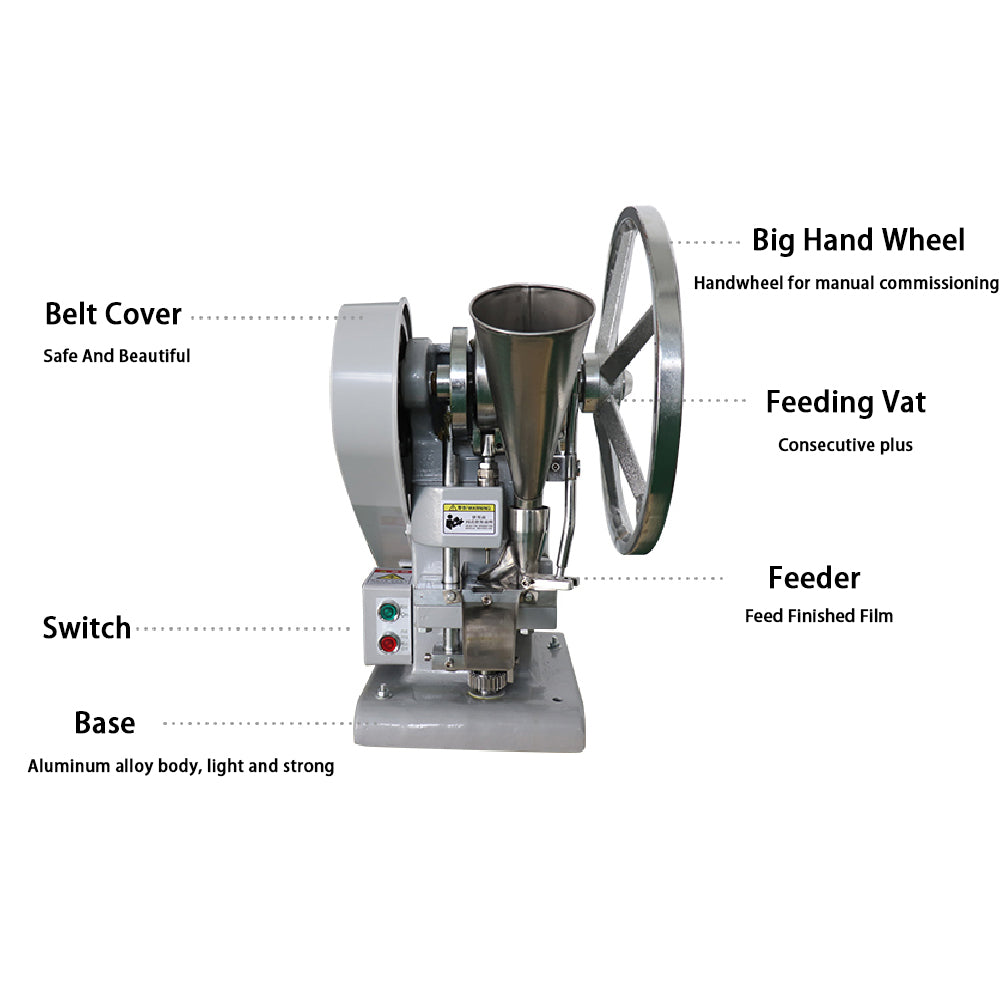

TDP-5 Single Punch Tablet Press Machine | Desktop Electric Tablet Maker for Lab & Small Batch Production
TDP-5 Single Punch Tablet Press Machine | Desktop Electric Tablet Maker for Lab & Small Batch Production
TDP-5 Single Punch Tablet Press Machine forms compatible powders or granules using single-punch tooling.
Technical specifications
| Parameter | Value |
|---|---|
| Model | TDP-5 |
| Max. Pressure | 50 kN |
| Max. Tablet Diameter | 16 mm |
| Max. Depth of Fill | 15 mm |
| Max. Tablet Thickness | 6 mm |
| Production Capacity | 5,000 pcs/h |
| Motor Power | 0.75 kW |
| Overall Size | 650 × 330 × 600 mm |
| Net Weight | 125 kg |
Before you order
Confirm tablet diameter, thickness, tooling and power configuration before ordering. Listed output depends on the formulation, tooling and operating conditions. Contact us for lead time and freight.
BEFORE YOU ORDER
Questions, answered.
How do I choose a tablet press?
Share your material, tablet dimensions, target output and available voltage. Model suitability depends on the formulation and selected configuration.
Can I request different tablet shapes?
Send a drawing or example with dimensions and marking requirements. Compatibility, feasibility and tooling costs must be confirmed for the chosen machine.
What are the lead time and shipping costs?
These depend on the model, configuration and destination. Request a quotation with the delivery country and postal code.
Can I order online?
Contact us first to confirm the machine and quotation. Online checkout can be enabled for products with confirmed pricing and shipping arrangements.
What about installation, warranty and spare parts?
Request the applicable installation guidance, warranty terms and spare-parts availability for your selected model before placing an order.
LET’S TALK ABOUT YOUR PROJECT
Your next tablet starts here.
Send your application and tablet requirements for a machine enquiry.
