400-Hole Manual Capsule Filling Machine | Blue (Size 00# & 0#)
Blue 400-Hole Manual Capsule Filler

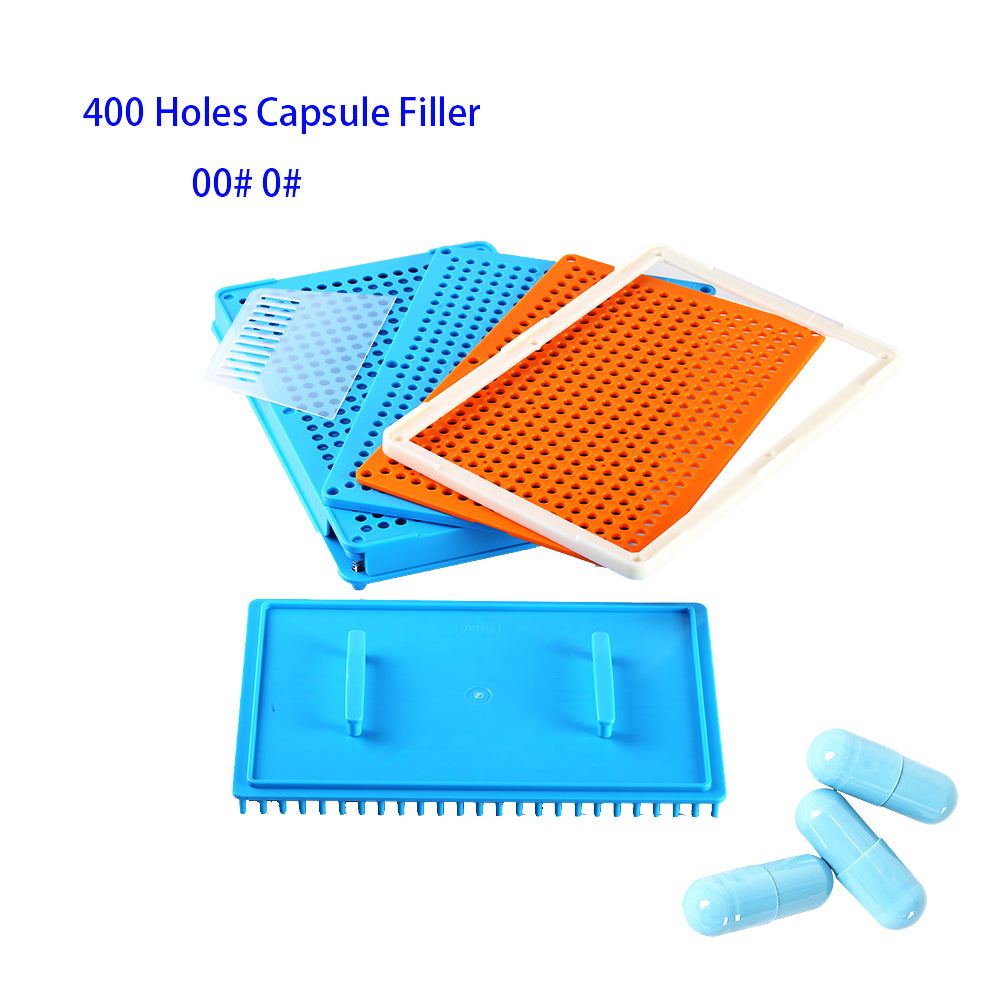

Prepare larger batches with a 400-hole capsule filling board. The blue plate assembly includes a powder-spreading frame, positioning plates and a tamping plate, as shown in the product photographs.
Specifications
| Hole count | 400 |
|---|---|
| Color | Blue |
| Material | ABS plastic |
| Size options | 0# or 00#; choose the matching variant |
| Listed dimensions | 385 × 265 × 75 mm |
| Listed weight | 2.7 kg |
| Operation | Manual; no electricity required |
Filling workflow
- Separate the capsule caps and bodies, then load them into the matching plates.
- Spread a suitable dry powder over the body plate and level it with the scraper.
- Use the tamping plate as needed, then align the cap plate and close the capsules.
- Remove the finished capsules and clean and dry the plates before the next batch.
Choose your configuration
Match the tray to your capsule shell size. Different shell sizes require matching plate holes; one tray is not a universal fit for every size. Product photographs show the filling workflow and sample capsules.
